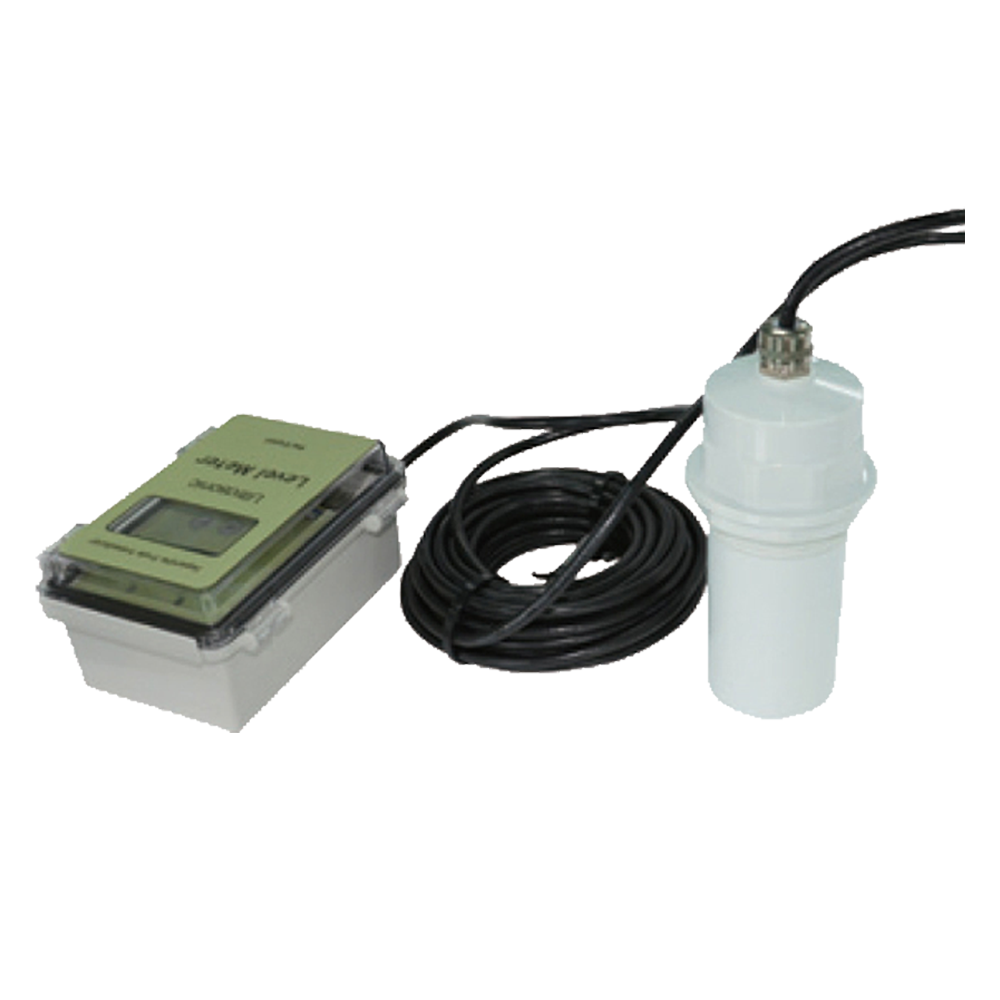

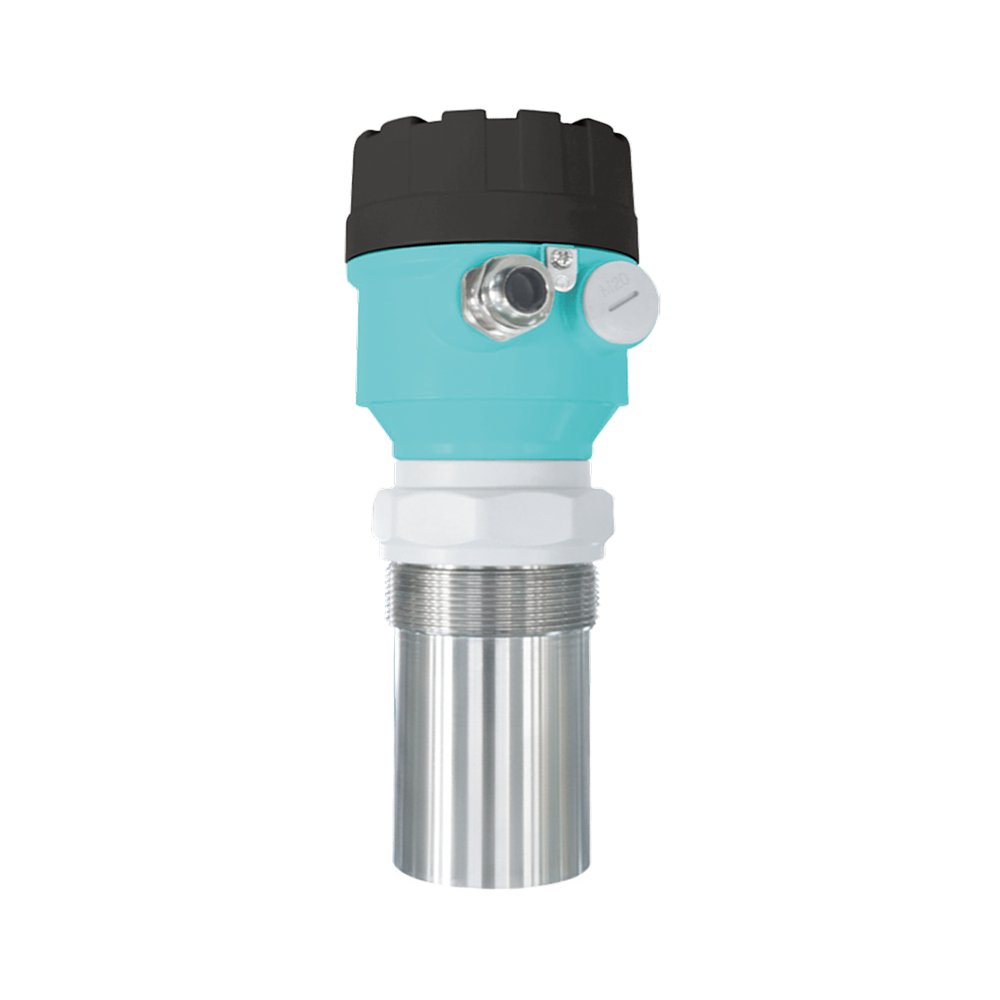

FU Ultrasonic Level Transmitter

FEEJOY Ultrasonic Level Transmitter / FU series Ultrasonic Level Transmitter realizes full digitalization and humanized design concept, and has perfect functions of object/liquid level measurement and control, data transmission and human-machine communication. The main chip adopts imported industrial-grade single-chip microcomputer, digital temperature compensation and ultra-wide voltage input voltage stabilization and dozens of related special integrated circuits.

Connection type

Thread, Flange, Bracket

Junction box material

ABS

Antenna material

ABS, PVDF

Electrical interface

M20*1.5, PG13.5, 1/2"NPT

Working Principle

Ultrasonic Level Transmitter is installed on the upper part of the container. Under the control of the electronic unit, the probe emits a beam of ultrasonic pulses to the measured object. The sound wave is reflected by the surface of the object, and part of the reflected echo is received by the probe and converted into an electrical signal. The time from ultrasonic emission to re-reception is proportional to the distance from the probe to the measured object. The electronic unit detects this time and calculates the measured distance from the known speed of sound. The level value can be obtained by subtraction.

Product Advantages

Affordable

Simpler and more economical than laser ranging technology

Easy maintenance

Ultrasonic technology generally does not require moving parts, so it is relatively convenient in installation and maintenance

Continuous measurement

Ultrasonic level gauge can not only measure the fixed point and continuous position, but also can conveniently provide the signal needed for telemetry or remote control

High security

Compared with radioactive positioning technology, ultrasonic level gauge does not need protection
