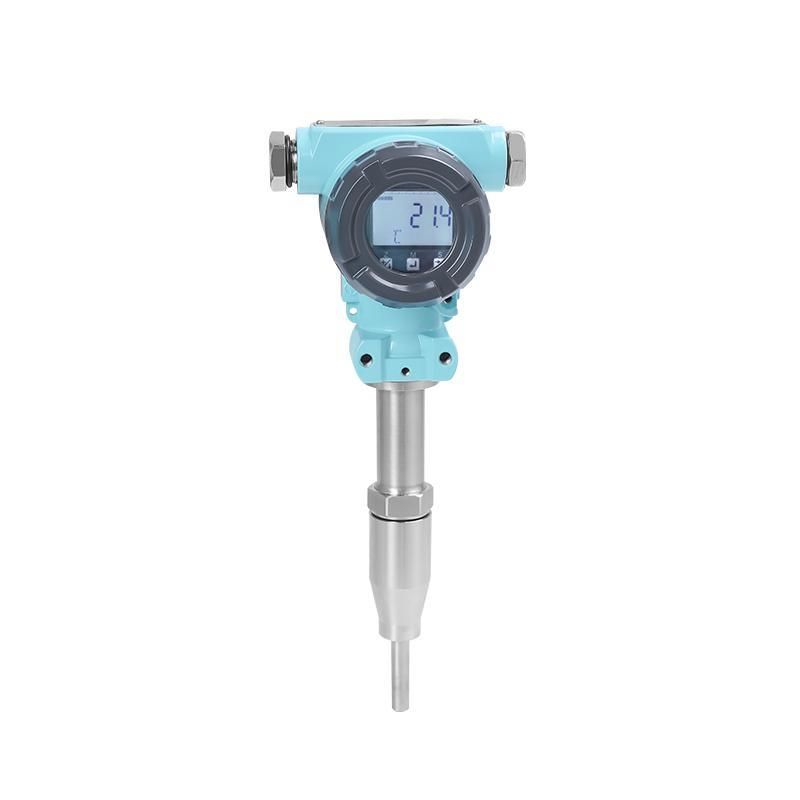

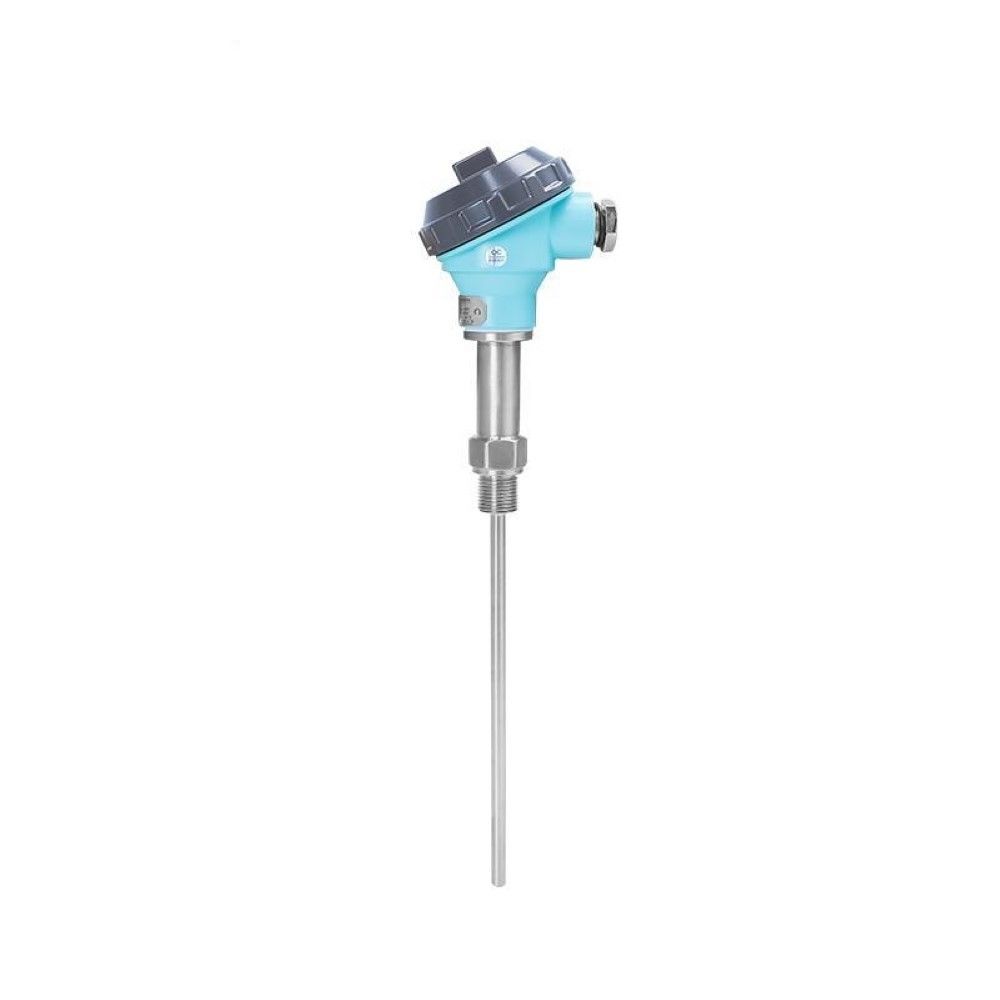

TI Temperature Transmitter

FEEJOY Temperature Sensor / TI series Temperature Transmitter use thermocouple, RTD as the temperature measuring element. It can be used with moving coil instrument, digital display instrument, recording instrument, regulator, computer, etc. to form various temperature measurement and control systems.

Measuring range

-200...+2000℃

Connection type

Thread, Flange, Chuck

Presicion

0.50%FS

Explosion-proof

Ex ia Ⅱ C T4～T6 Ga

Working Principle

TI with thermocouple (resistance) integrated Temperature Transmitter is a field-mounted temperature transmitter unit in the temperature series instrumentation it consists of thermocouple, RTD and temperature transmitter module. Using a two-wire system with non-linear correction circuit, it can directly measure the temperature of liquids, gaseous media and various specialties in the range of -200~1600℃ in industrial processes. The temperature signal is converted into a 4~20mADC current output signal that is linear with the temperature signal and sent to the display and regulation recorder or computer for centralized control.

Product Advantages

High accuracy

High precision cold end compensation circuit, compensation accuracy ±0.5℃ in the whole temperature range; with internal drift self-correction system to ensure accuracy in the whole working temperature range

Advanced technology

Original non-linear correction circuit, the output signal is linear with the measured temperature

Remote control

Standard 4-20mA with digital signal based on HART protocol

Easy operation

Temperature transmitter range and zero point are continuously adjustable externally

Related product video

Industries Application

Technical Specifications

Downloading Files

FAQ

Accessories

Product Model

Product Photo

Measuring range

Rated pressure

Ambient temperature

Connection type

Connection specification

Connection material

Sensor material

Wetted material

Power

Presicion

Output signal

Explosion-proof

Protection class

-200...+2000℃

-0.1...+26MPa

-20...+80℃

Thread, Flange, Chuck

Thread≥1/2", Flange≥DN20, Chuck≥2"

SUS304, SUS316, other precious metals

Cu50, Cu100, PT100, PT1000, E, K, N, S, B

SUS304, SUS316, PTFE, corundum

24VDC

0.50%FS

4~20mA, 4~20mA+Hart, RS485

Ex ia Ⅱ C T4~T6 Ga

IP65
