PI600 Submersible Pressure Transmitter

PI600 Submersible Pressure Transmitters are pressure sensors with a specific design. They are responsible for hydrostatic level measurement in tanks, wells, shafts and boreholes and guarantee unsurpassed leak tightness as well as media resistance. Submersible pressure sensors for general applications are used in rivers and lakes as well as tank and storage systems, assist in the control of sewage lifting and pumping stations and are used to monitor clarifiers, settling tanks and rainwater retention basins.

Connection type

Thread, Flange, Chuck

Wetted material

SUS316,SUS304

Power

24VDC

Presicion

0.5%FS, 0.2%FS

Working principle

The submersible pressure sensor, also called a level probe or submersible pressure transmitter, is immersed in the liquid to be detected and lowered to near the bottom. The submersible pressure sensor should be installed at the lowest measuring location, suspended above the bottom. There, the submersible pressure transmitter measures the hydrostatic pressure, which enables a direct conclusion regarding the current level.

Product Advantages

Good stability

Solid state construction with no moving parts for high reliability and long life

High precision

High-precision measurement can be carried out from water, oil to paste with high viscosity, and it is not affected by the foaming, deposition and electrical characteristics of the measured medium. Wide range of temperature compensation.

Easy to install

The submersible liquid level transmitter is directly put into the measured medium, which is quite convenient to install and use.

Excellent performance

The input liquid level transmitter has power reverse polarity protection and overload current limiting protection.

Related product video

Industries Application

Technical Specifications

Downloading Files

FAQ

Accessories

Product Model

Product Photo

Rated pressure

Rated temperature

Ambient temperature

Connection type

Connection specification

Material

Explosion-proof

Power

Output signal

Insertion depth

Protection class

Weight(KG)

Product Size(L*W*H)

Package Size(L*W*H)

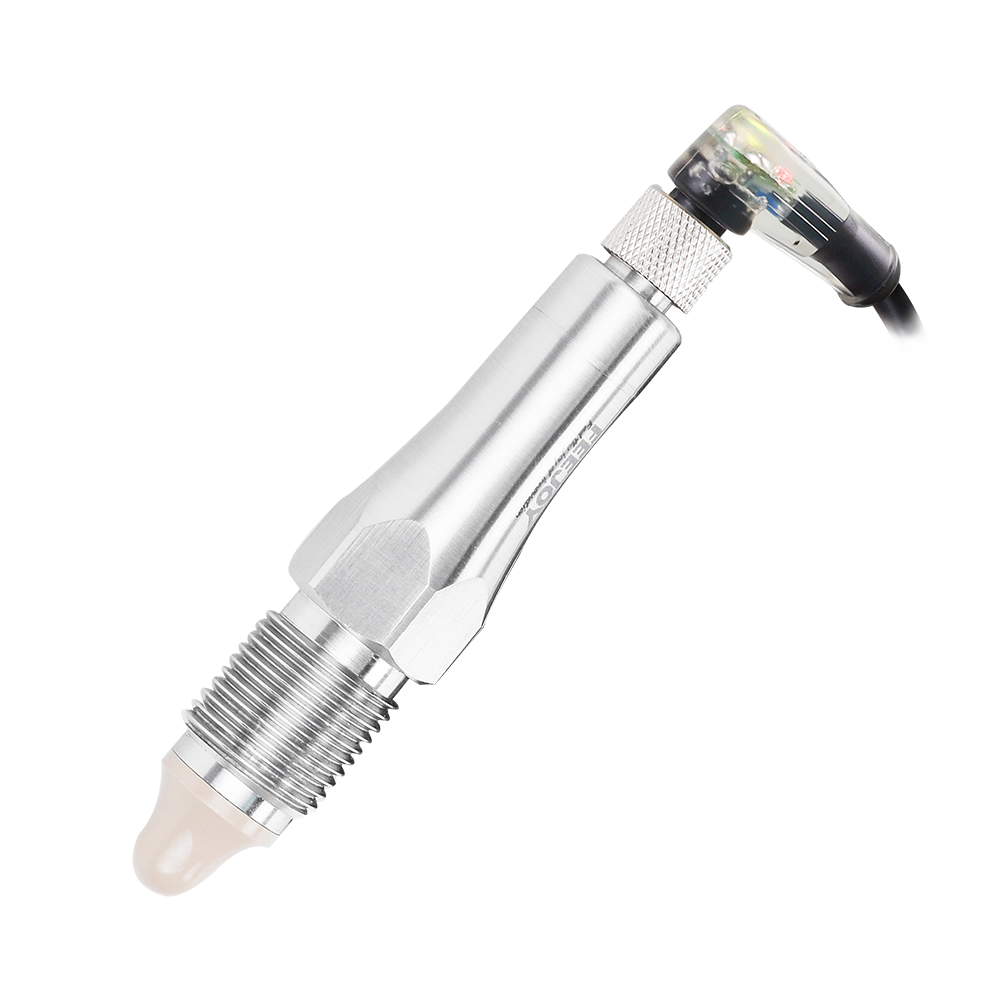

FMS

-0.1...+4MPa

-40~80℃，-40~150℃

-40~85℃

Thread, Flange

Thread≥1/2", Flange≥DN25

PEEK+SUS304，PEEK+SUS316

Ex ia IIC T4 Ga

18~32VDC

PNP, NPT, SPST (no explosion-proof), SPDT (no explosion-proof)

≥40mm

IP65
