FMS Microwave Level Switch

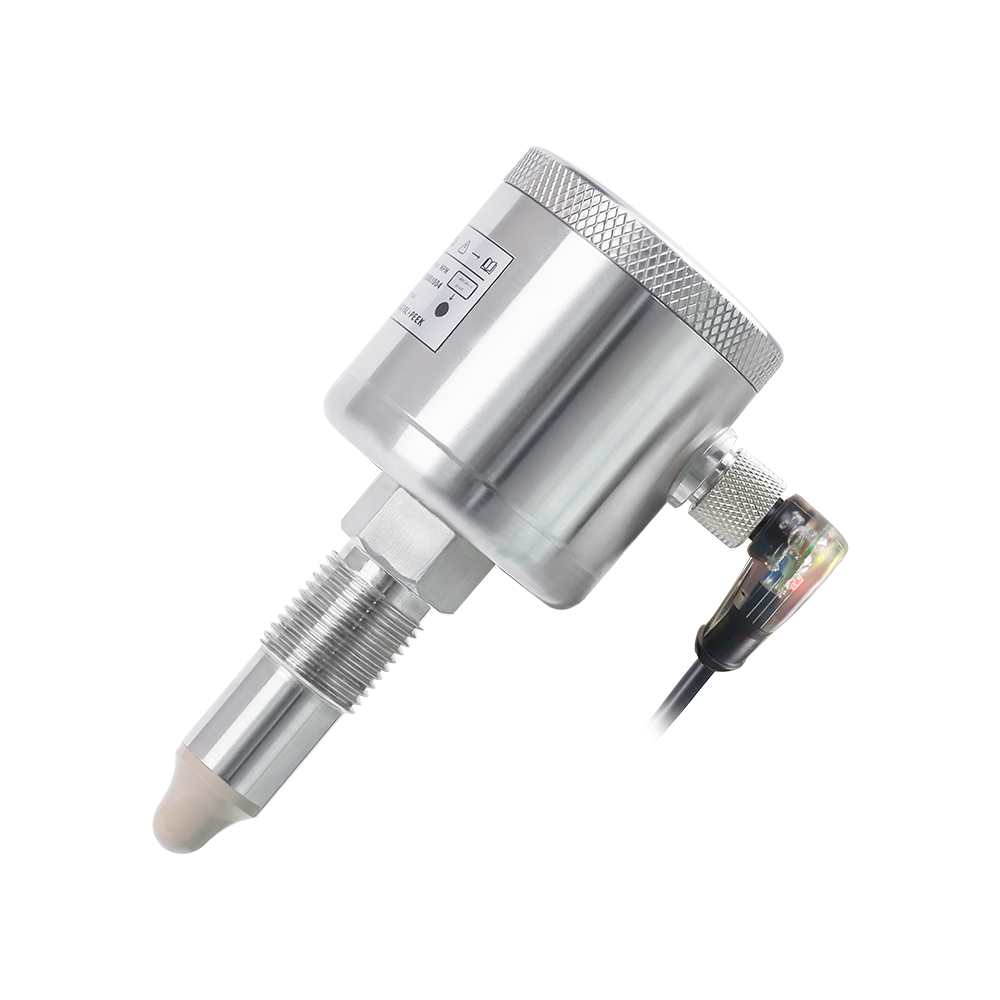

FEEJOY Microwave Level Switch / FMS series Microwave Level Switch consists of three electrically isolated units: transmitter, receiver and amplifier, with the transmitter and receiver mounted in pairs with each other.

Rated pressure

-0.1...+4MPa

Ambient temperature

-40...+85℃

Connection type

Thread, Flange

Explosion-proof

Ex ia IIC T4 Ga

Working Principle

The microwave signal ofMicrowave Level Switch is propagated between the transmitter and the receiver. If a medium is blocked between the two sensors so that the microwave cannot reach the receiver, a contact signal is output.

The length of time delay from the detection of a change in state of the microwave series to relay operation is set by two separately adjustable potentiometers; one for setting the relay to be triggered by a valid signal and the other for setting the relay to be triggered by an interrupted signal. Any change in state during the delay time period will cause the delay to restart.

Product Advantages

Good reliability

Unaffected by foam, adhesive, flow, turbulence, suspended particles; very high temperature stability and accuracy; shock and vibration resistant

Prevention of pump idling

Pump idling is a serious process problem because it can lead to dosing deviations or pump damage. Microwave Level Switch can hold viscous media or media that crystallize

High functionality

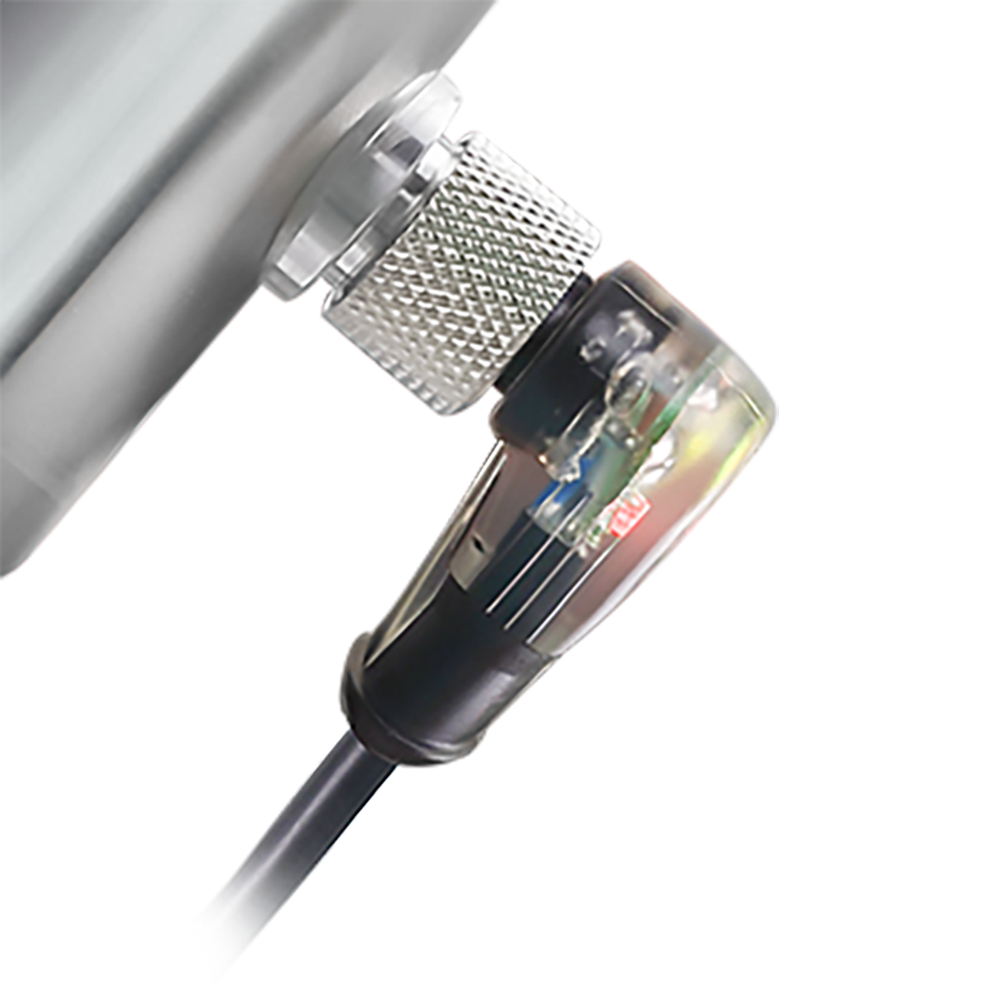

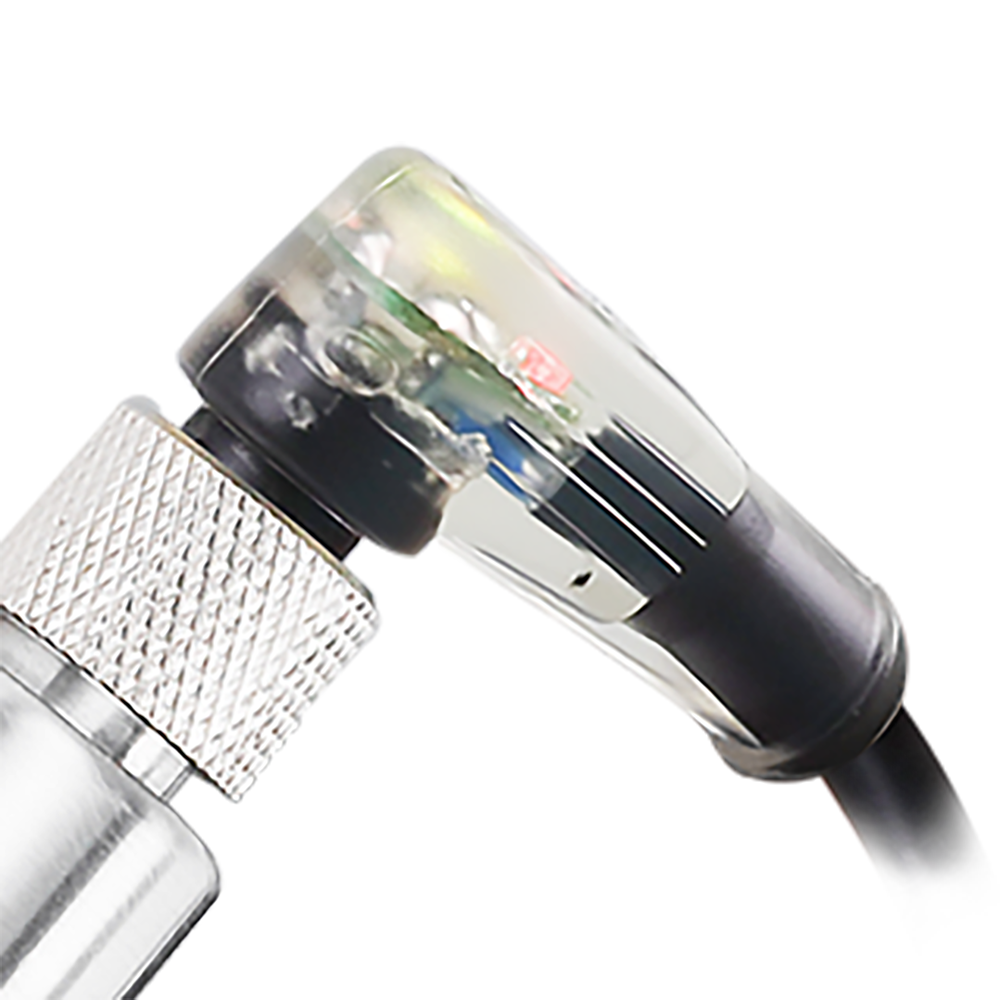

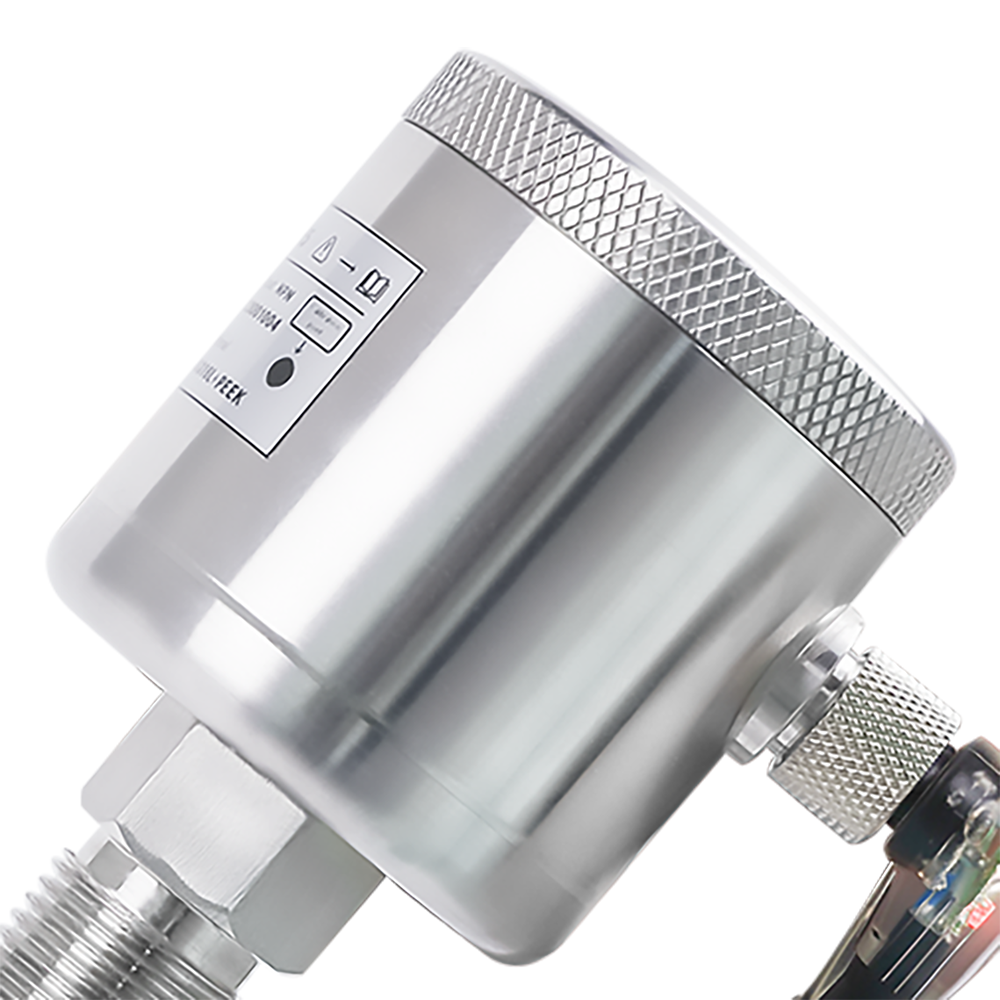

LED switch alarm indicator, fast response time (<100ms); fully integrated electronic components, no moving parts; sturdy corrosion-resistant housing

High flexibility

Provide flexible and versatile multiple process connections

Related product video

Industries Application

Technical Specifications

Downloading Files

FAQ

Accessories

Product Model

Product Photo

Rated pressure

Rated temperature

Ambient temperature

Connection type

Connection specification

Material

Explosion-proof

Power

Output signal

Insertion depth

Protection class

Weight(KG)

Product Size(L*W*H)

Package Size(L*W*H)

FMS

-0.1...+4MPa

-40~80℃，-40~150℃

-40~85℃

Thread, Flange

Thread≥1/2", Flange≥DN25

PEEK+SUS304，PEEK+SUS316

Ex ia IIC T4 Ga

18~32VDC

PNP, NPT, SPST (no explosion-proof), SPDT (no explosion-proof)

≥40mm

IP65
