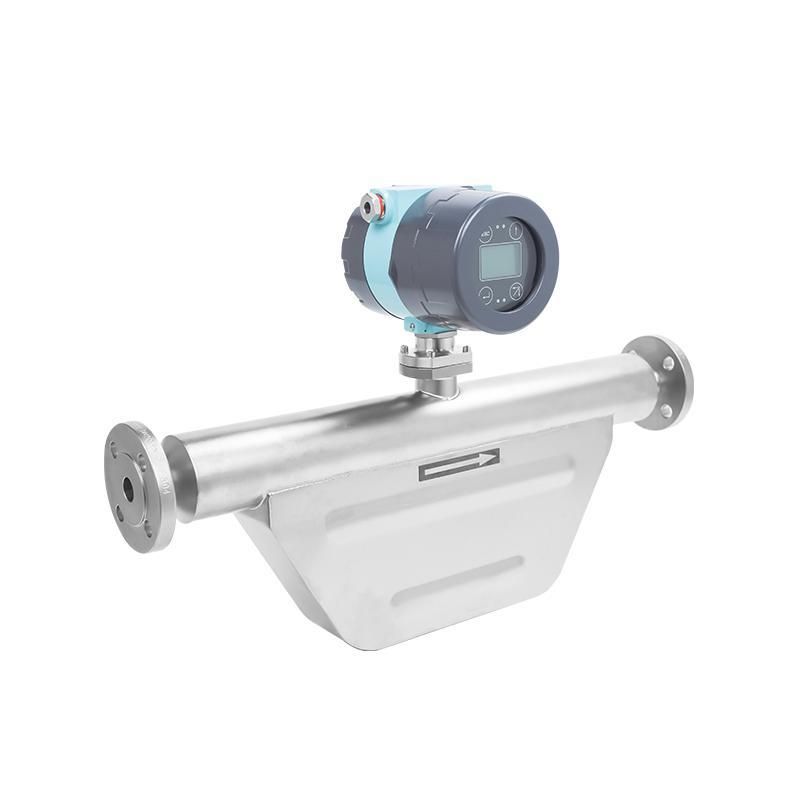

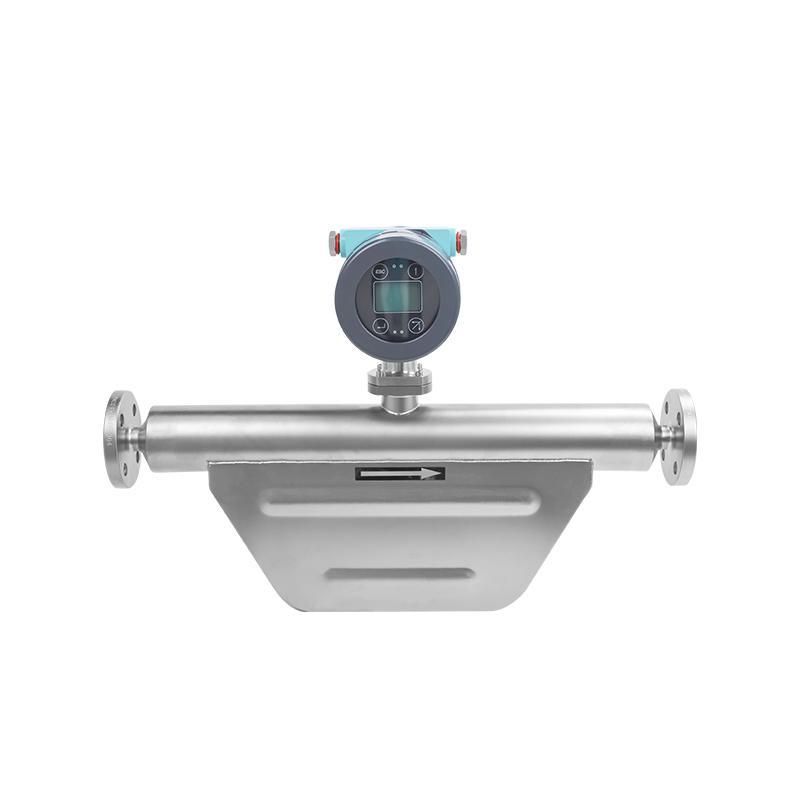

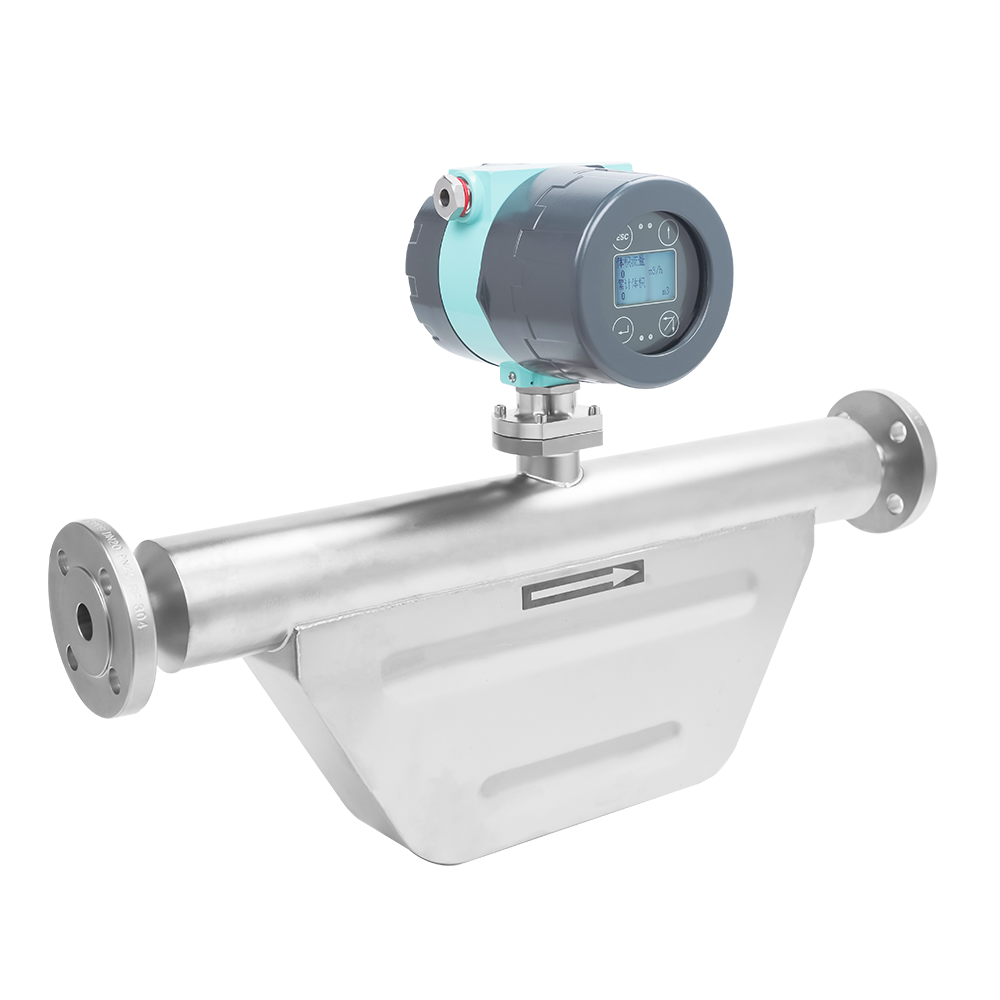

FZDMF-1 Mass Flowmeter

FEEJOY Mass Flowmeter / FZDMF-1 series Mass Flowmeter wide range of applications, can measure a variety of non-Newtonian fluids, a variety of slurries, suspensions. High viscosity fluids, etc., low installation requirements, low maintenance rate

Measuring caliber

DN10...DN200

Rated temperature

-200...+350℃

Connection type

Thread, Flange, Chuck

Explosion-proof

Non-hazardous area

Working Principle

FZDMF-1 series Mass Flowmeter realizes direct precision measurement of fluid mass flow without any pressure, temperature, viscosity, density and other conversions or corrections. Its structure is composed of two parts: sensor unit and transmitter unit. Adopted pure digital adaptive drive core processor, full closed-loop DSP signal processing, special structure, with high stability, strong anti-vibration performance, fast response time, high accuracy (0.1% ~ 0.2%).

Product Advantages

High reliability

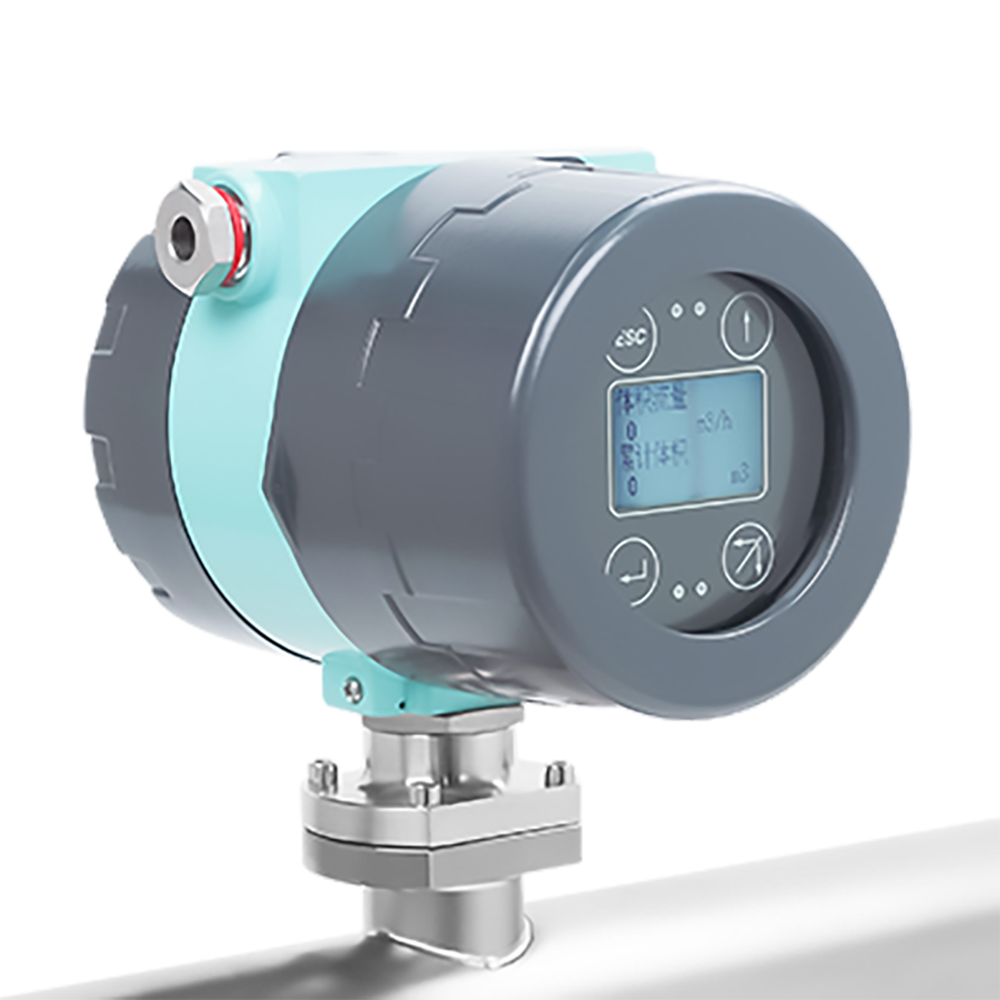

Full touch operation, without opening the cover, you can operate directly through the glass of the explosion-proof housing and adjust the internal parameters

High sensitivity

Engineer's password and switchers' password make the adjustment of the instrument the simplest; classic U-shaped tube

High accuracy

Full digital Yu closed-loop control function and DSP digital processing circuit, to achieve high stability and good two-phase flow measurement accuracy

Variety of styles

Mass flowmeters can be divided into two categories: one is the direct type, which directly outputs the mass flow rate; the other is the indirect type or derivation type

Related product video

Industries Application

Technical Specifications

Downloading Files

FAQ

Accessories

Product Model

Product Photo

Measuring caliber

Rated pressure

Rated temperature

Ambient temperature

Connection type

Connection specification

Sensor material

Body material

Explosion-proof

Presicion

Power

Output signal

Protection class

FZDMF-1

DN10...DN200

-0.1...+4MPa

-200...+350℃

-50...+70℃

Thread, Flange, Chuck

Thread≥1/2", Flange≥DN10, Chuck≥2"

SUS316L, Hastelloy, 316L+PTFE, Dual-phase

SUS304

Non-hazardous area

0.2%FS, 0.15%FS, 1.0%FS

24VDC, 220VAC

RS485+4~20mA+Hart+Pulse

IP67
